36*1W DMX512 LED High Power Wall Washer;AC90-260V input

Use safety and attention

1. Operator who using this product must be clear intense light is harm to human eyes, avoid to glare at the product closely when the product is turn on.

2. Before using, please make sure that the voltage and frequency of power supply is right, in order to avoid damage to the product.

3. Before using this product, please read the instruction manual for this product.

Components of the product

l The main part of the product pressed with good quality of stainless steel.

l Sealed up with the toughened glass and silasticto, and internal silicone potting with good capacity of waterproof.

l Solid-state high-power LEDs, 3-watt.

l PMMA(optical grade acrylic plastic) lens.

l Built-in constant current driver ensures the lamp work steadily.

l 3-core rubber cable of power supply is 1.5 mete.

l 3-core silicone cable for signal input is 0.25 meter with waterproof male connector, and the other cable for signal output is female connector.

General Features

l The working voltage is AC90-260v, 50/60Hz.

l The working temperature is -40~50

l Low luminous decay, 1% per 1,000 hours.

l The external control mode is DMX512 with color changes synchronously.

l Long life, working hours at least up to 30,000 hours.

l IP65.

The product is required to the voltage,A90-260V, 50/60Hz.

This product is spot lamp based on high-power LEDs.

Specifications

According to the order of customer.

Access and Use of the Product

The product is required to the voltage, AC 110V/220V, 50/60Hz. Please confirm that it is right before use it.

1. Put your screws into the base hole of the lamp and fix it with the fixture well.

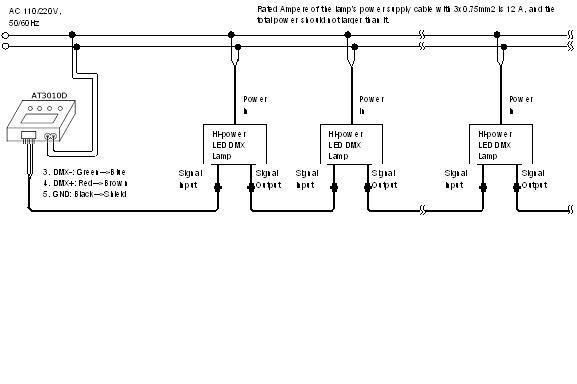

2. Connect the brown and blue wires of power supply cable to source of AC 110V/220V, 50/60Hz, after shut down the power supply.

3. Connect the signal cable with male connector to remote DMX512 controller's signal output cable with female cable or to signal output cable of the previous lamp.
