Product Name: LED Wall Washer
Model: RDLWW-001
Power: 18 * 1W
LED Source: High Power LED
Size: L500mm*W70mm*H72mm
Input voltage: single color and Internal Control Changeable AC100-240V;external control RGB DC24V
Color: 2700-2900K/3000-3500K/5000-6000K/6000-6500K (Warm white / white)
Colorful Internal Control Changeable effect: Colorful gradient,colorful hopping,colorful flicker,etc.no need controller
External control RGB Control mode: DMX512 Control (this price no include the controller price)
Color effects: Single color, chasing, running water, 256 gray scale, full-color
Optional lens angle: 15 , 30 , 45 , etc.
Projection distance: 10M-20M or more
Shell Material: Made of aluminum oxide coating and the overall molding process, tempered glass cover, to ensure a good heat dissipation, effectively reducing the LED light failure during use.

Performance: waterproof, dustproof, anti-UV, pressure, resistance to cracking, high temperature resistance, fire, super impact of aging
Operating frequency: 50-60HZ
Protection: IP65
Life: 50000H
Use of the environment: -30 C ~ 70 C

Net weight: 1.9KG
Application: widely used in building outline lighting, gardens, squares and shopping malls decorative lighting, single building, historical buildings exterior lighting, interior light outside the building through lighting, indoor local lighting, green landscape lighting, billboard, medical, cultural and designed according to the obviously, bars, discos and other entertainment places atmosphere lighting

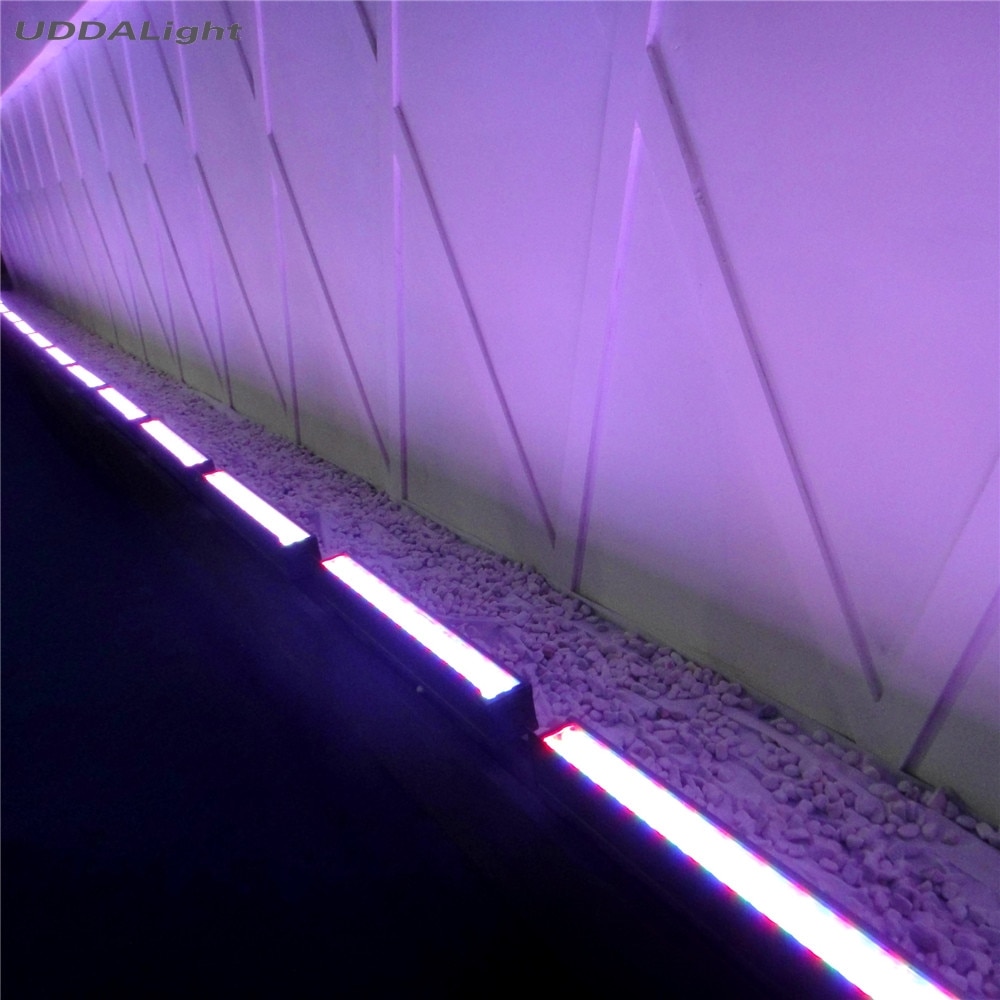

LED wall washer: Let the light like water washed walls, is largely used for architectural lighting purposes, as well as to outline the contours of large buildings! As the LED energy-saving, high luminous efficiency, color-rich, long life and other characteristics, so now the other wall washer light LED wall washer gradually being replaced.

Warranty Description
1, if quality problems, please contact the Division I, and to be returned within seven days of receipt , expired when their own solutions handle ;
2 , if indeed because of quality problems , our commitment to the unconditional return , under normal conditions of use , quality assurance is based on the correct storage, installation , use and maintenance ;
3, due to improper installation , violation of product rules, and cause damage to the product , does not belong within the scope of this warranty , the quality of the quality problems during the warranty period , the Company will select the maintenance during the warranty period , transpose ( Parts ) or replace the new products, and other methods to solve them . Warranty period is two years.

Product Features
1, LED wall washer is a LED light source , high-quality , high brightness imported large chips , high brightness, low power consumption , low heat, long life to 50000H, can be divided into monochrome, internal colorful color , outside the control of dedicated multi-function controller ( or DMX512 controller ) to achieve full-color running water , chasing, scanning and other changes in effect . Also access the DMX console , users can enter their own data to program control .

2, the shell is made of advanced aluminum oxide coating and the overall molding process , tempered glass cover , to ensure a good heat dissipation, effectively reducing the LED light failure during use .

3 , lines clear , simple structure , beautiful appearance , strong, corrosion-resistant , easy to install.

4, the lamp surface electrostatic spray , high temperature resistance, weather good performance.

5 , the use of voltage AC/DC12V, 24V, AC110V, AC220V optional .

6 , reliable seal protection grade IP65.

7 , adjustable light angle , position, so that in the best position to achieve the most satisfactory lighting effects.

Installation Precautions
1 , cut off the main power before installation to prevent leakage .

2 , choose the installation location, the lighting on the mounting position can be fixed with screws , connecting thread , please do a good job in the joints waterproofing treatment .

3 , the control system is designed by an engineer working in normal conditions of use and after use typical color-changing effects work , you can achieve optimal LED life , outside of these ranges or conditions or conditions in these and the upper limit of the long-term work , will further reduce the life of the LED , in extreme cases, the internal light source assembly malfunction .

4 , when the installation of lighting gently to avoid damage to the lamps.
